Morris 500kg Electric Chain Hoist 415V 3 Phase With Beam Trolley & Pendant

Morris industrial electric chain hoist with 500kg capacity, beam trolley, pendant control and chain container.

Working used equipment, suitable for assessment and installation into a compatible workshop or industrial lifting system.

Specifications

Brand: Morris

Capacity: 500kg, marked on the casing and bottom hook block

Supply: 415V, three phase, 50Hz

Rated current: 1.0A

Motor power: 0.4kW

Duty rating: 30% ED

Pictured chain arrangement: double fall, 2/1

Main lifting speed in double-fall configuration: 4 metres/minute

Plate also lists 8 metres/minute for single-fall operation

Creep speed: not confirmed

Actual lifting height and trolley beam-width range: not measured

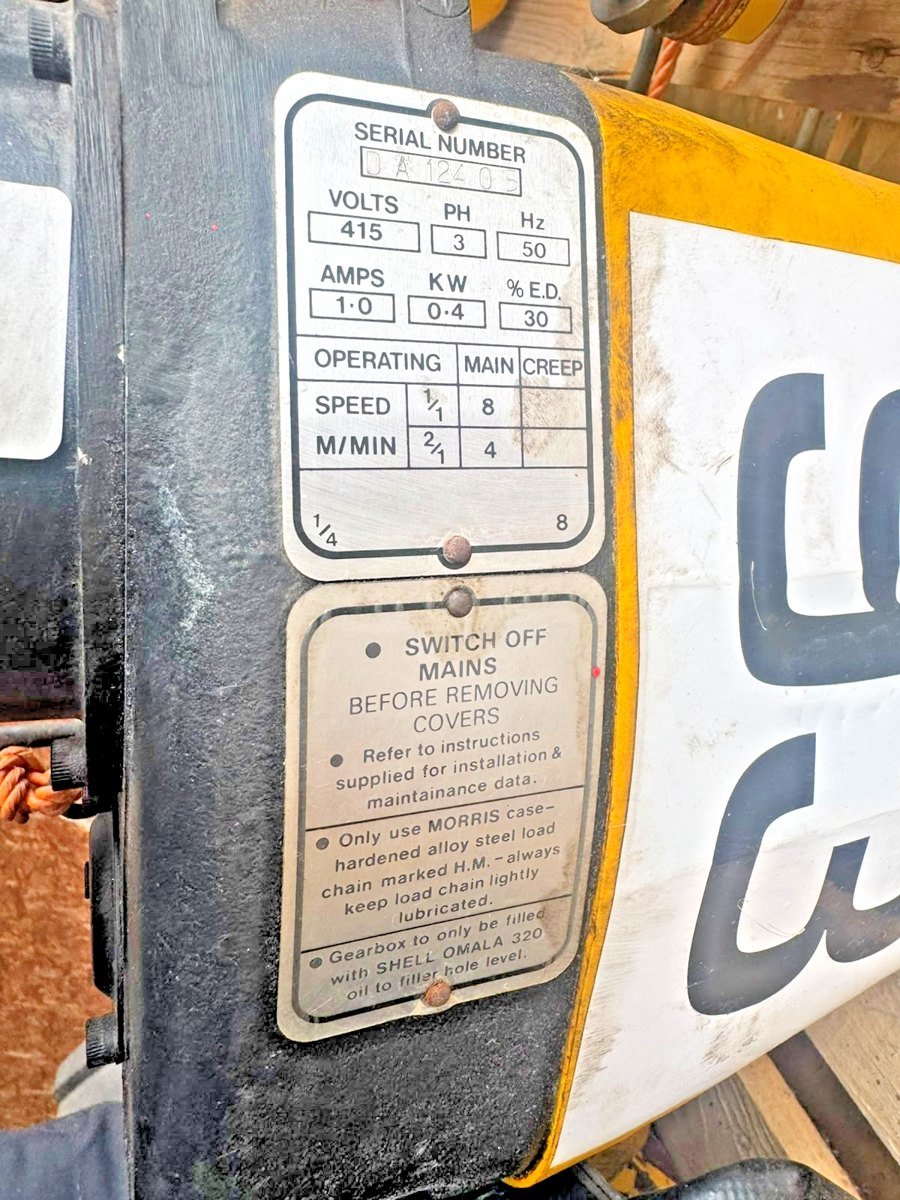

Manufacture date: not shown on the photographed plate

Included

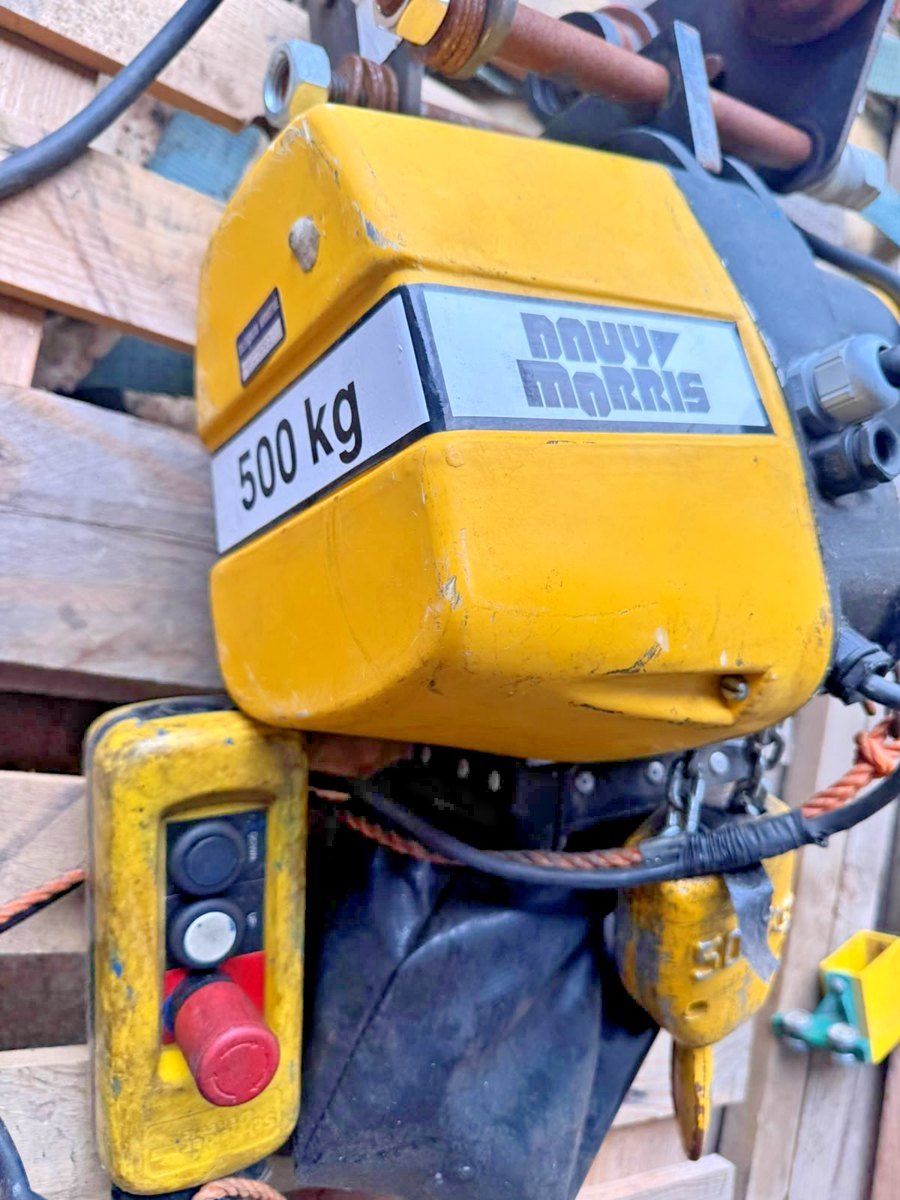

Morris electric chain hoist

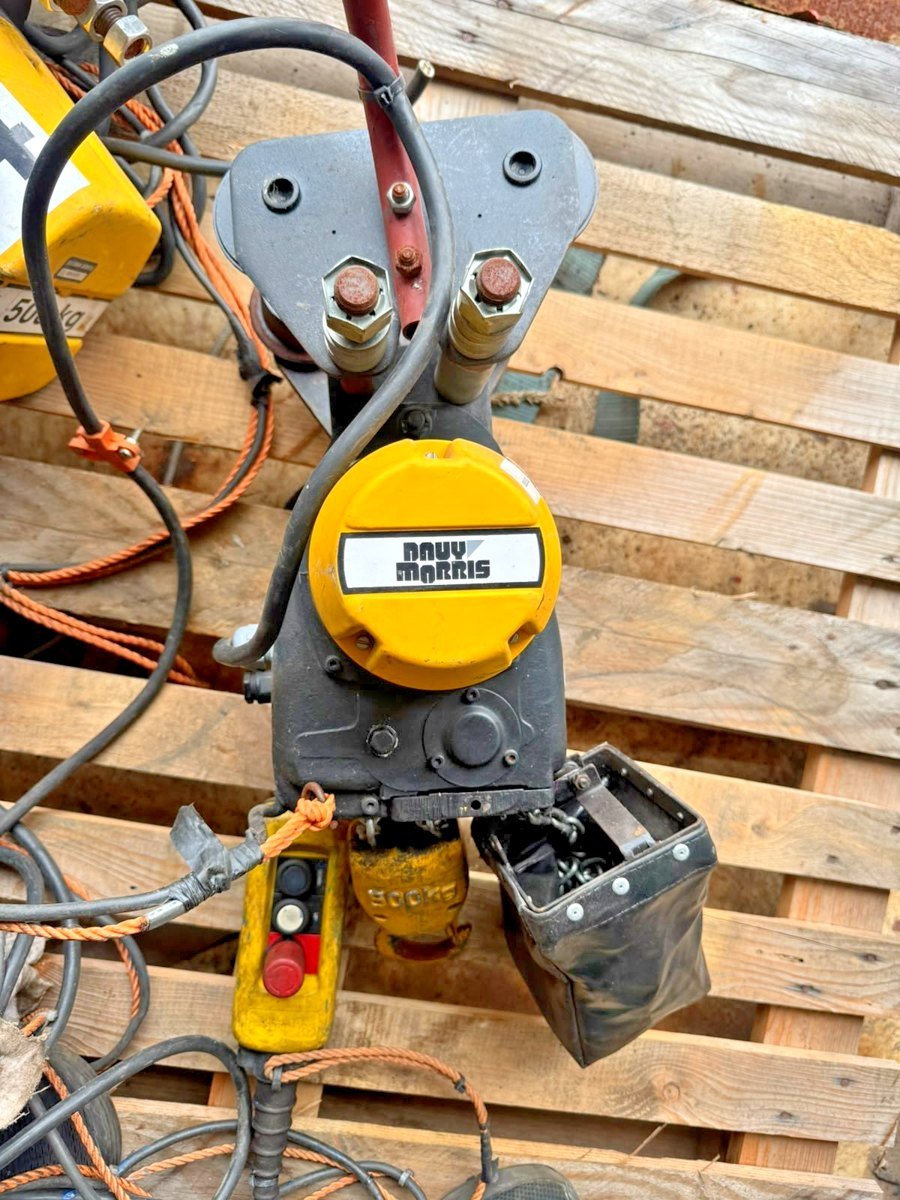

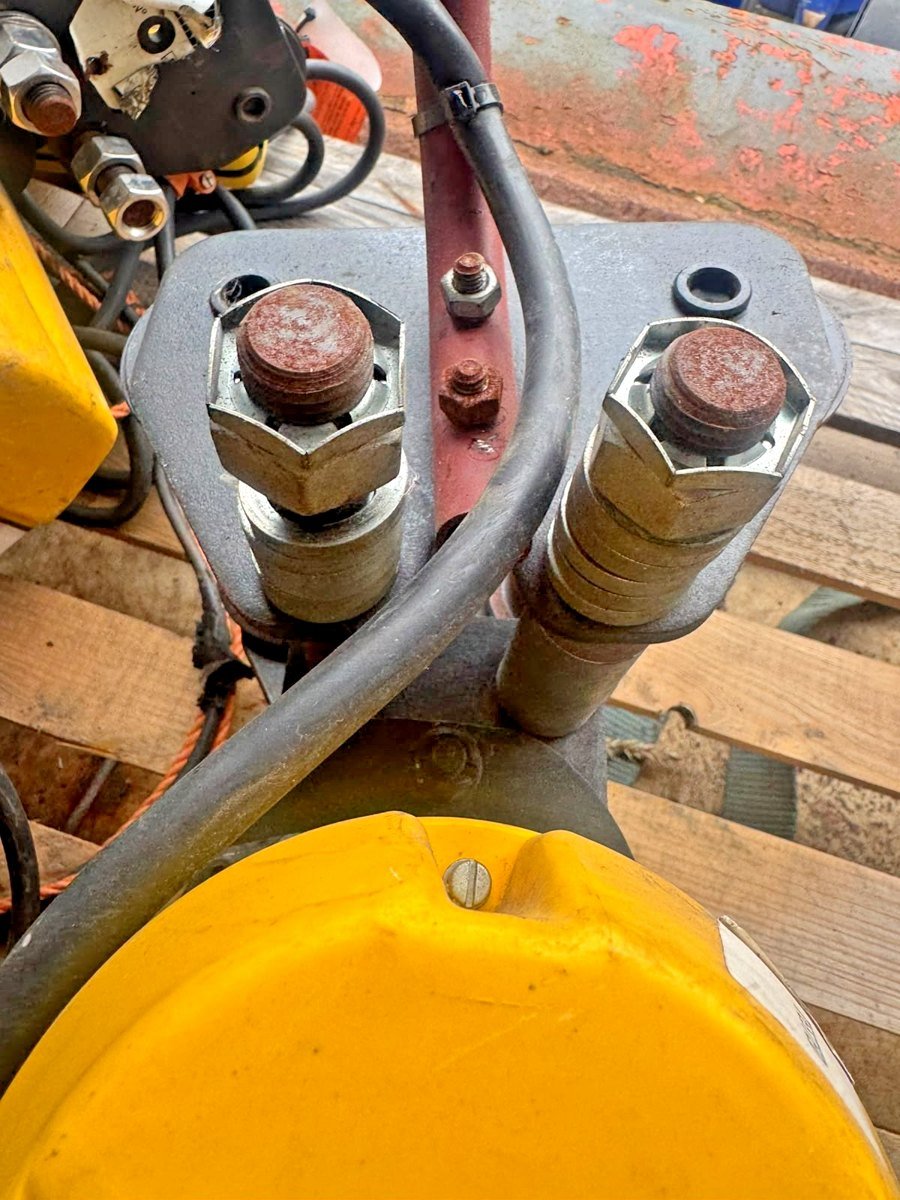

Beam trolley assembly pictured

Lifting chain and 500kg bottom hook block

Pendant with up/down buttons and emergency stop

Black chain container

Attached cables pictured

Condition

The hoist functions and works. It has scratches, chipped paint and surface corrosion, particularly on the hook, trolley wheels, shafts and fasteners.

The bottom hook safety latch is missing. An unused cable-entry opening is uncapped, and part of the pendant cable is wrapped in tape. The condition beneath the tape has not been established.

These details are included so the buyer can assess the equipment accurately. The hook latch, cable entry and taped cable require attention and checking before lifting service.

Certification

No current LOLER thorough examination report or certification is supplied. Working operation does not establish examination status or suitability for immediate use. Inspection by a competent person and appropriate electrical checks are required before commissioning.
