Morris 500kg Electric Chain Hoist 400V 3 Phase With Pendant & Chain Container

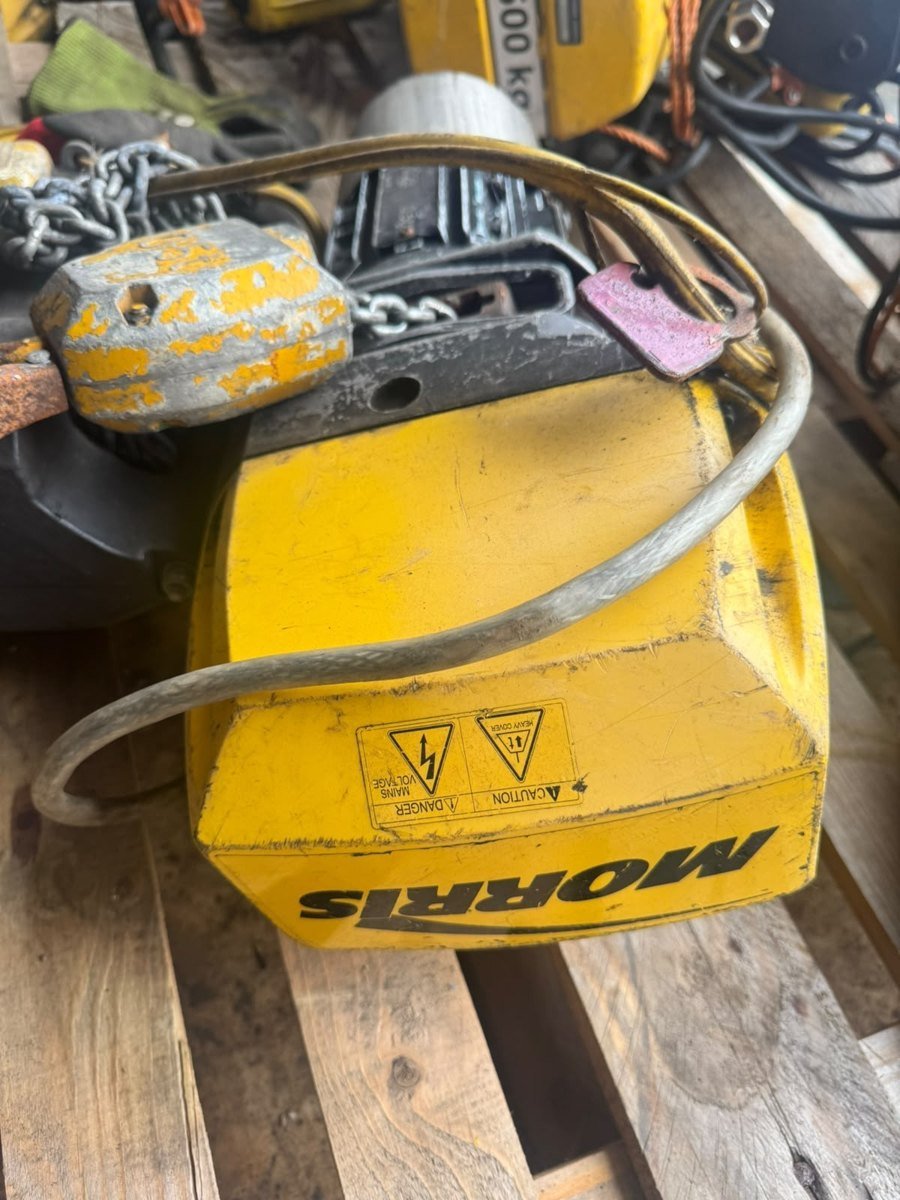

Morris industrial electric chain hoist with 500kg capacity in the double-fall configuration shown , yellow pendant control and black chain container.

Working used equipment, manufactured in Great Britain. The motor plate records the year as 2000 .

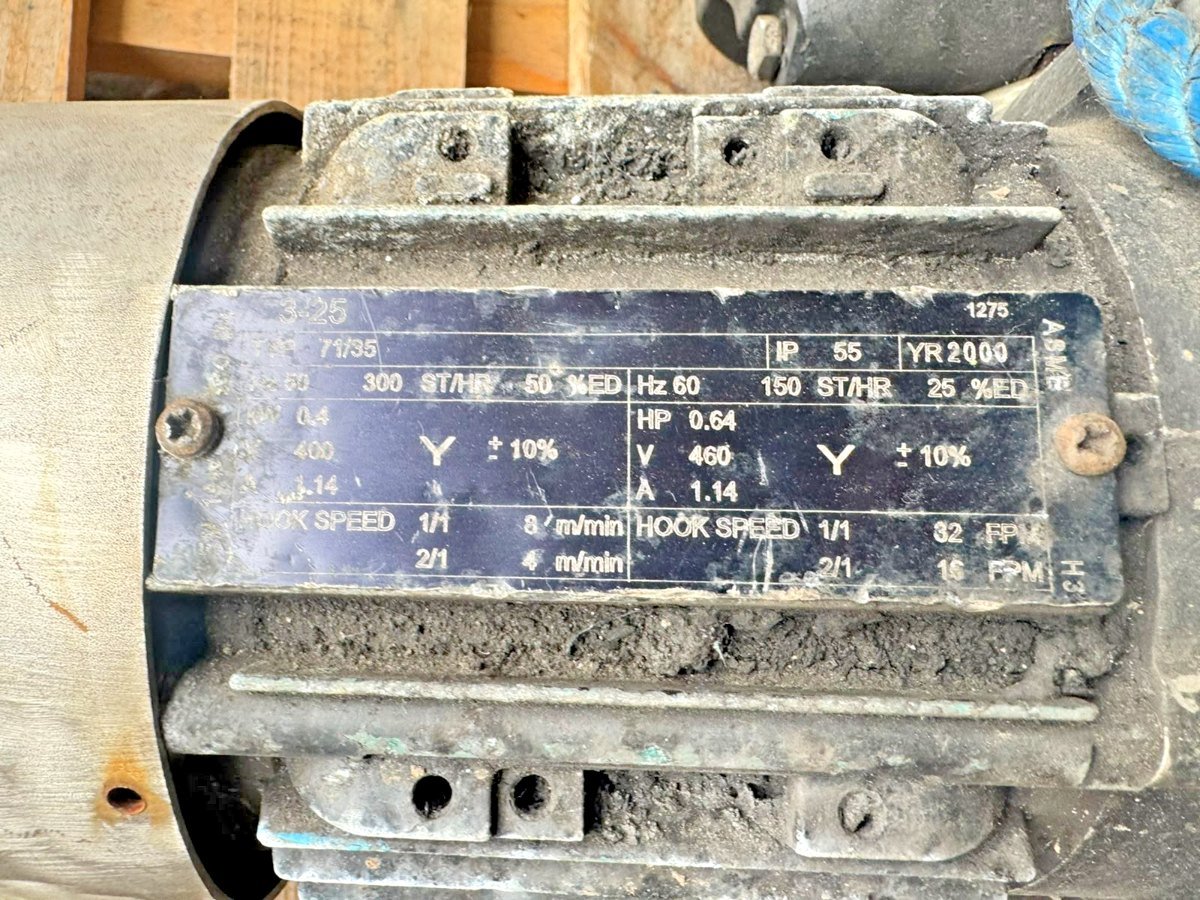

Specifications from the plates

Manufacturer: Morris

Serial number: DE003019

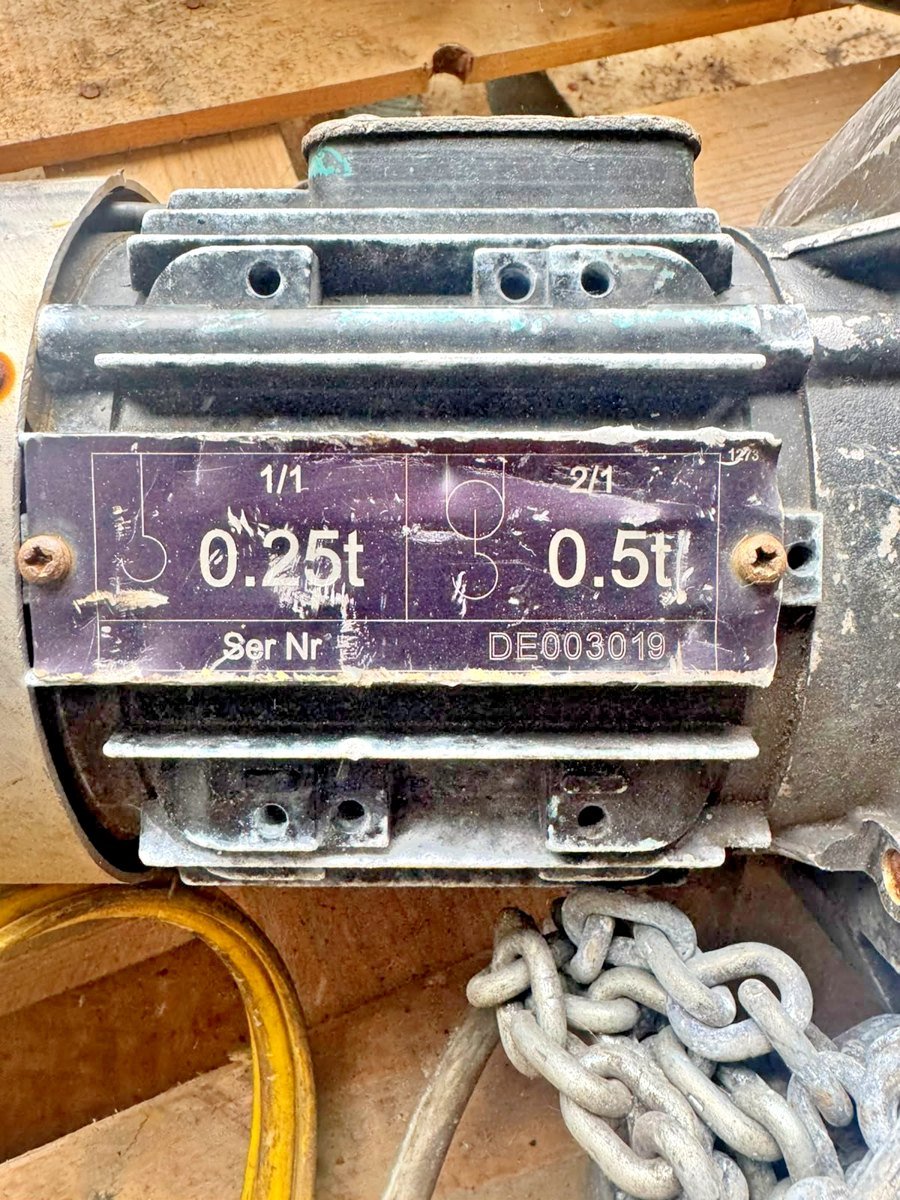

Capacity: 500kg double fall, 2/1

Alternative plate rating: 250kg single fall, 1/1

Supply marking: 400V, three phase, 50Hz

Motor power marking: 0.4kW

Current marking: 1.14A

Hook speed marking at 50Hz: 4 metres per minute double fall / 8 metres per minute single fall

Protection rating: IP55

Manufacture year: 2000

Actual lifting height: not measured

Included

Morris electric chain hoist

Load chain and 0.5-tonne bottom hook block

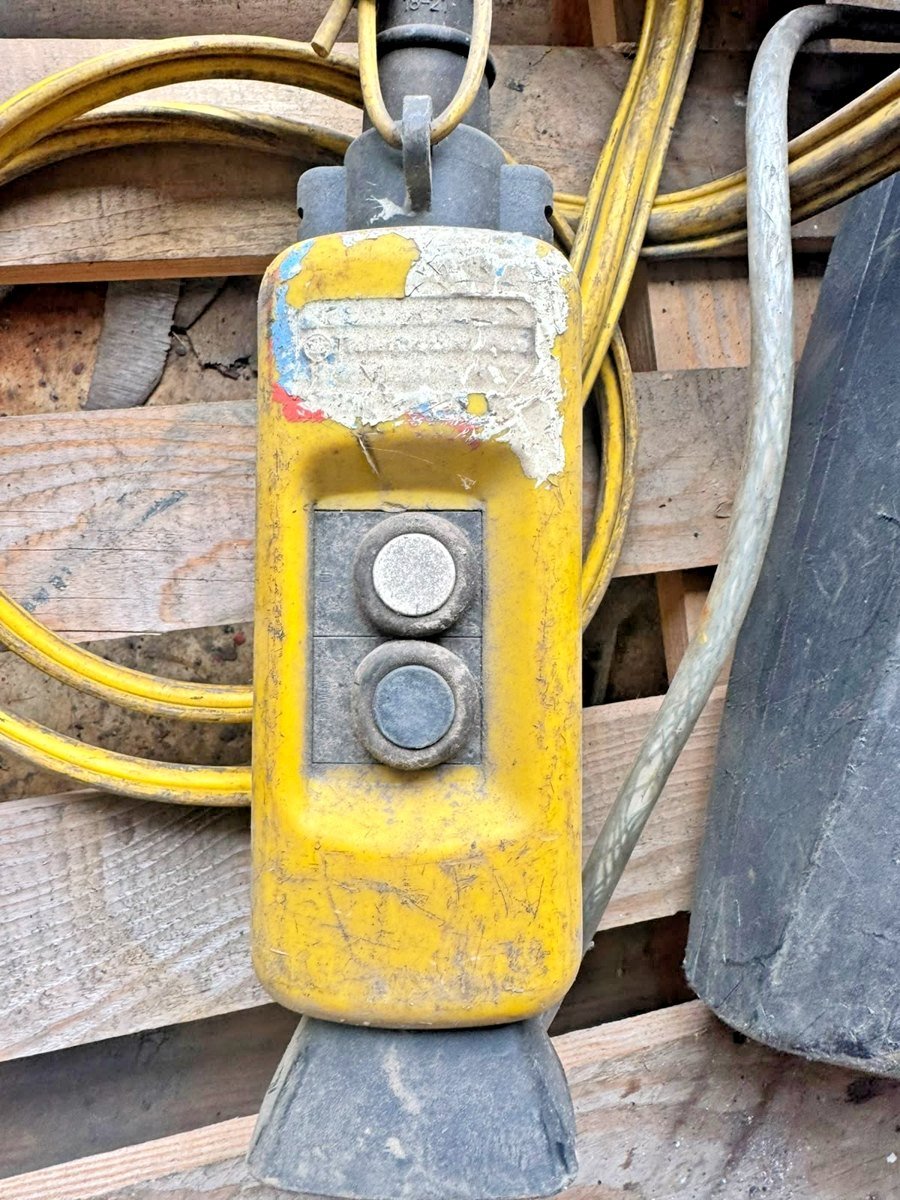

Yellow two-button pendant control

Black chain container

Attached cables shown

Condition

The hoist functions and works. It has signs of industrial use, including substantial paint loss, scratches, dirt, oxidation and surface corrosion, particularly around the hook, fittings and chain-guide area.

No current LOLER thorough examination report or certification is supplied. Working operation does not establish certified lifting condition or suitability for immediate lifting service.
