Mannesmann Demag PK5NF Electric Chain Hoist 500/1000kg 3 Phase – working

Mannesmann Demag PK5NF industrial electric chain hoist, supplied as pictured.

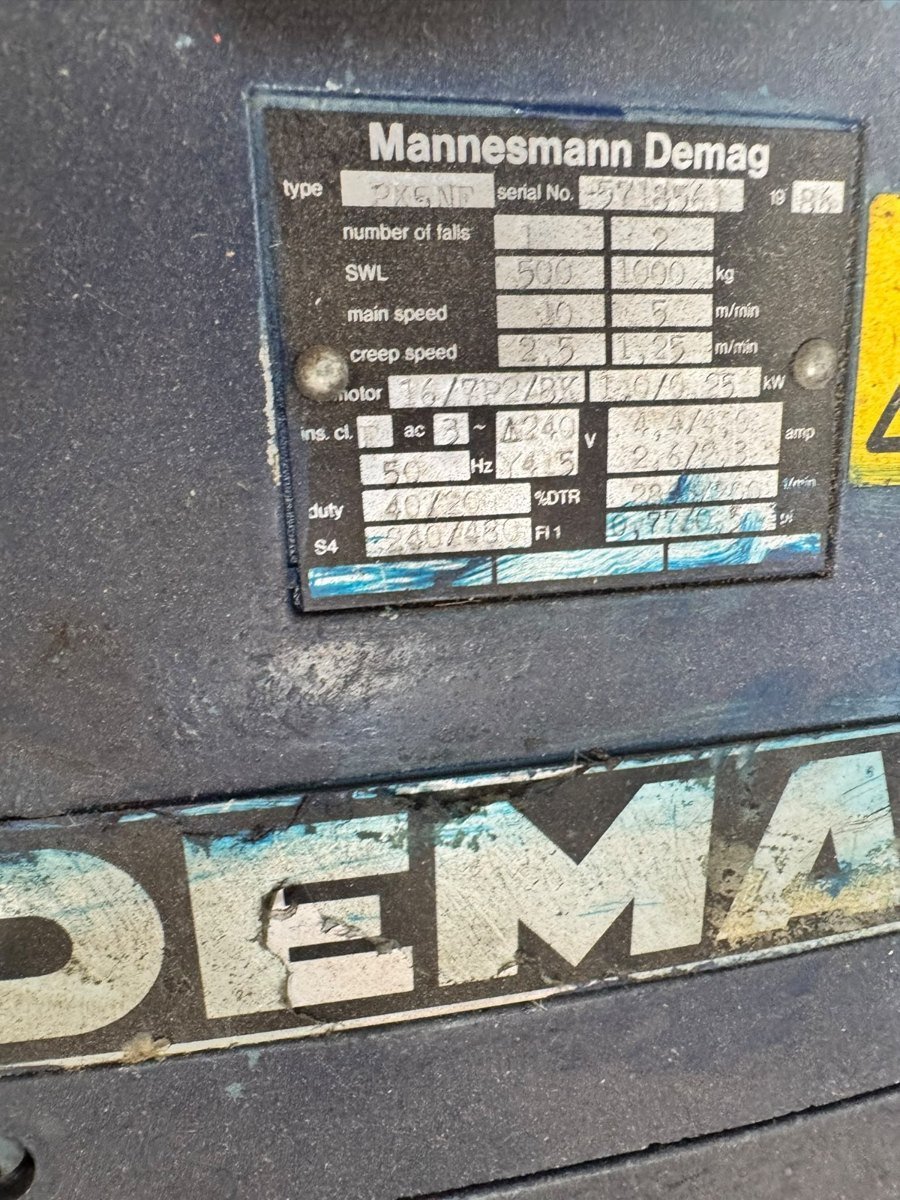

Specifications — as marked on the identification plate: • Manufacturer: Mannesmann Demag • Type: marking appears to read PK5NF • Rated capacity with one chain fall: 500kg • Rated capacity with two chain falls: 1000kg • Main lifting speed: 10m/min with one fall; 5m/min with two falls • Slow lifting speed: 2.5m/min with one fall; 1.25m/min with two falls • Three-phase AC supply • Marked voltage: 440V • Frequency: 50Hz • Insulation class: F •

The plate lists ratings for two chain configurations. The fitted configuration has not been verified, so this item is not being represented as a confirmed 1000kg lifting setup. approx 3M chain hight

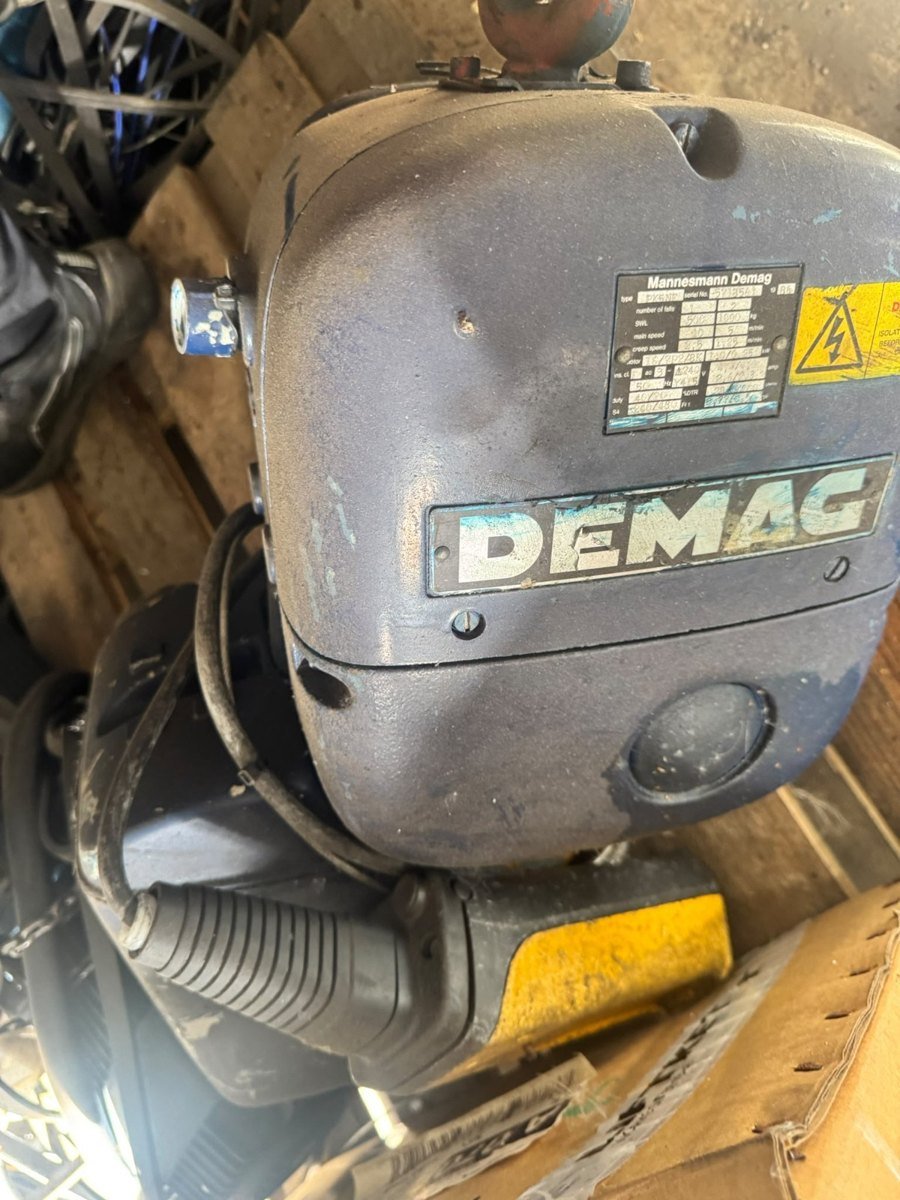

Used industrial condition with scratches, worn paint and decals, dirt and surface corrosion. A pendant-style control and cabling are visible alongside the hoist; their connection and operation have not been verified. The full load chain and bottom hook are not clearly shown, and completeness has not been confirmed.

Supplied untested. Electrical operation, brakes, controls, limit switches and lifting performance have not been verified. No certification, test certificate or current inspection report is supplied.

The ratings above are the manufacturer’s plate markings, not confirmation of its current safe lifting capability. Requires specialist assessment, confirmation of the chain configuration, electrical checks and any necessary servicing, repairs and inspection/testing before use.

Sale is for the Demag hoist and its attached components pictured. Other equipment and loose items in the background are excluded. Please review both photographs carefully.
