Konecranes XN5 1000kg Electric Chain Hoist with Beam Trolley Working No LOLER

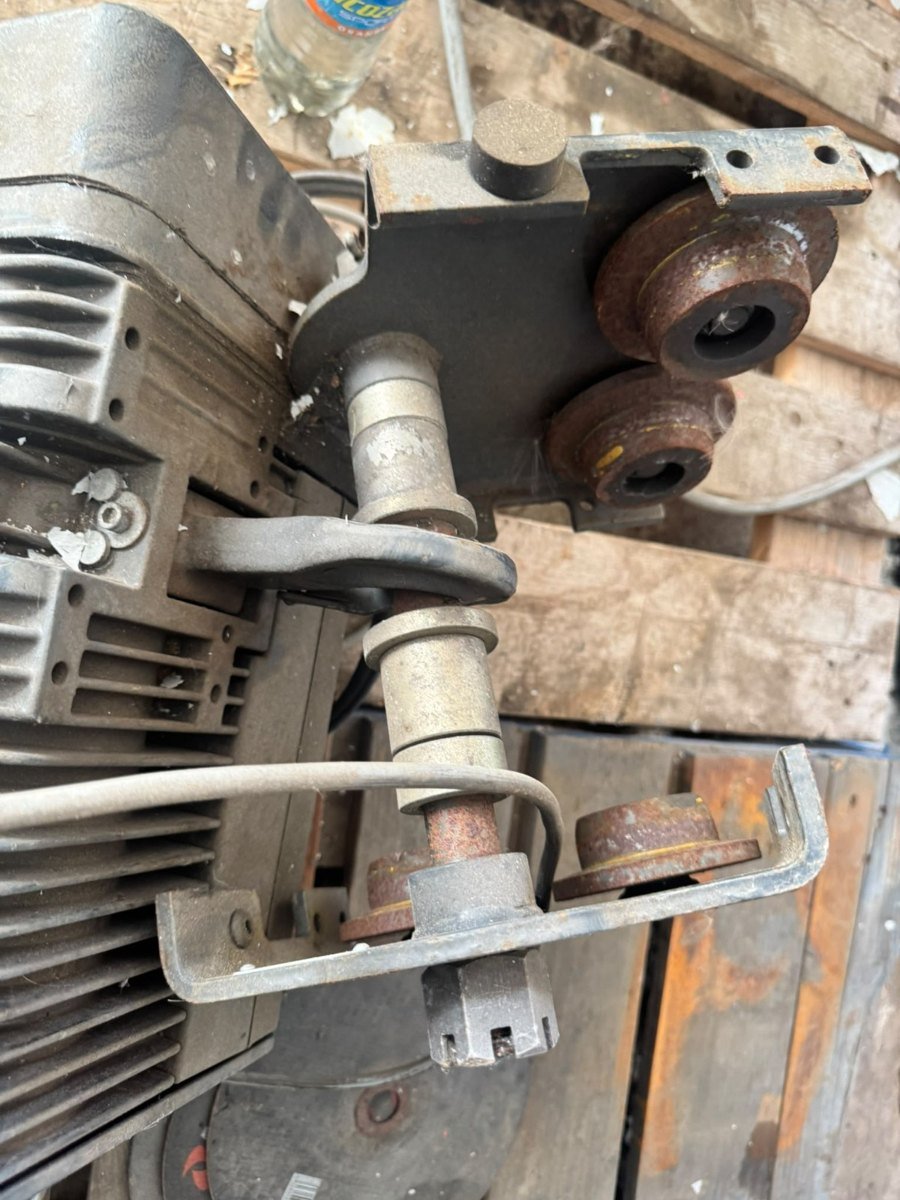

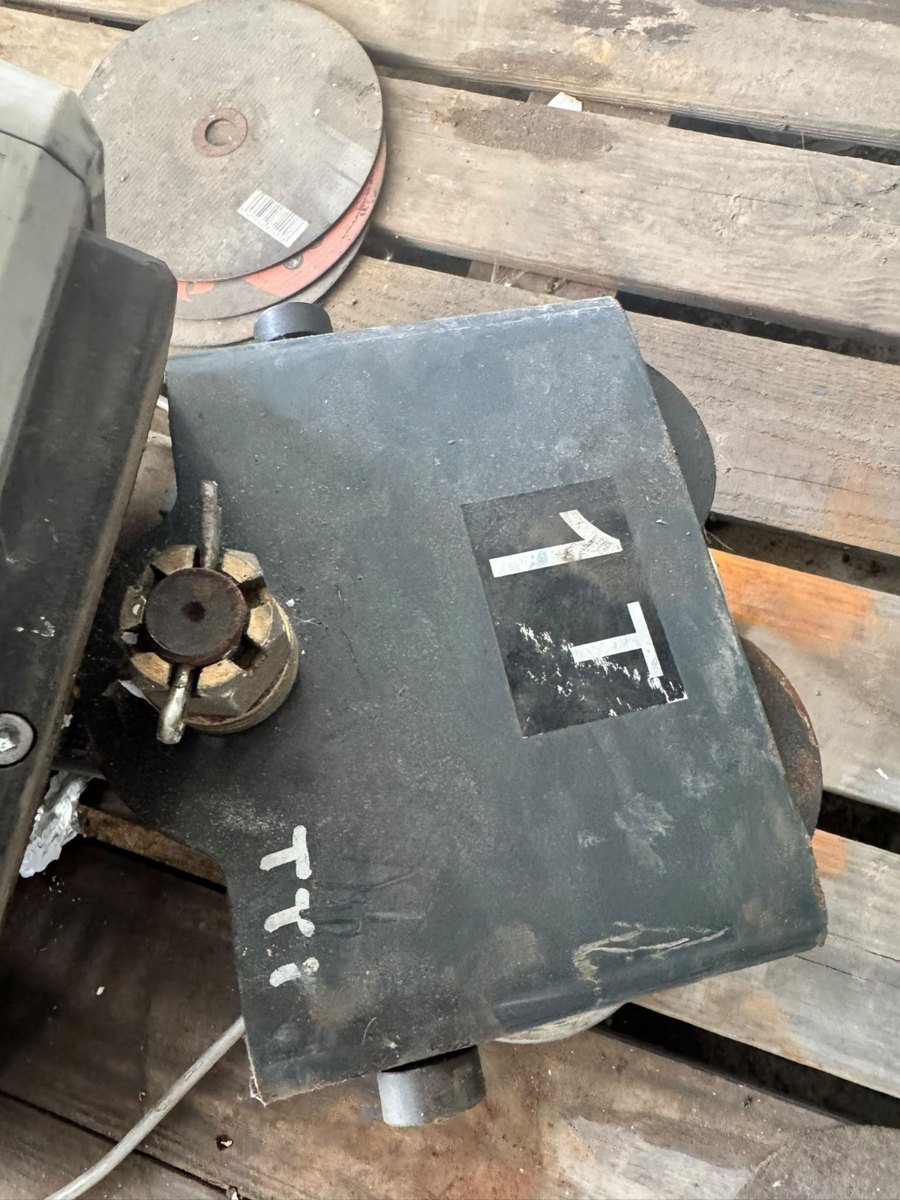

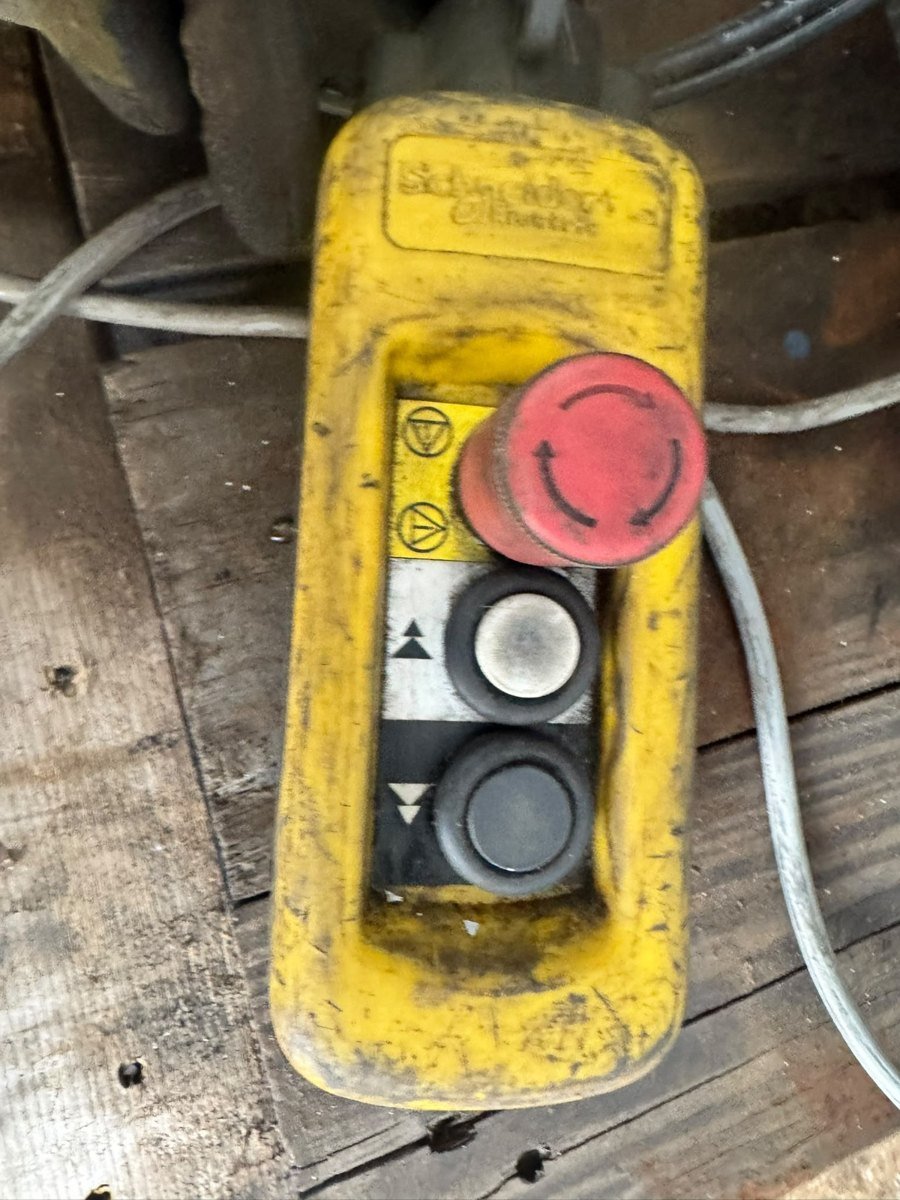

Konecranes XN5 electric chain hoist in working order, rated at 1,000kg / 1 tonne , supplied with the pictured beam trolley, pendant control, load chain, bottom hook and chain container.

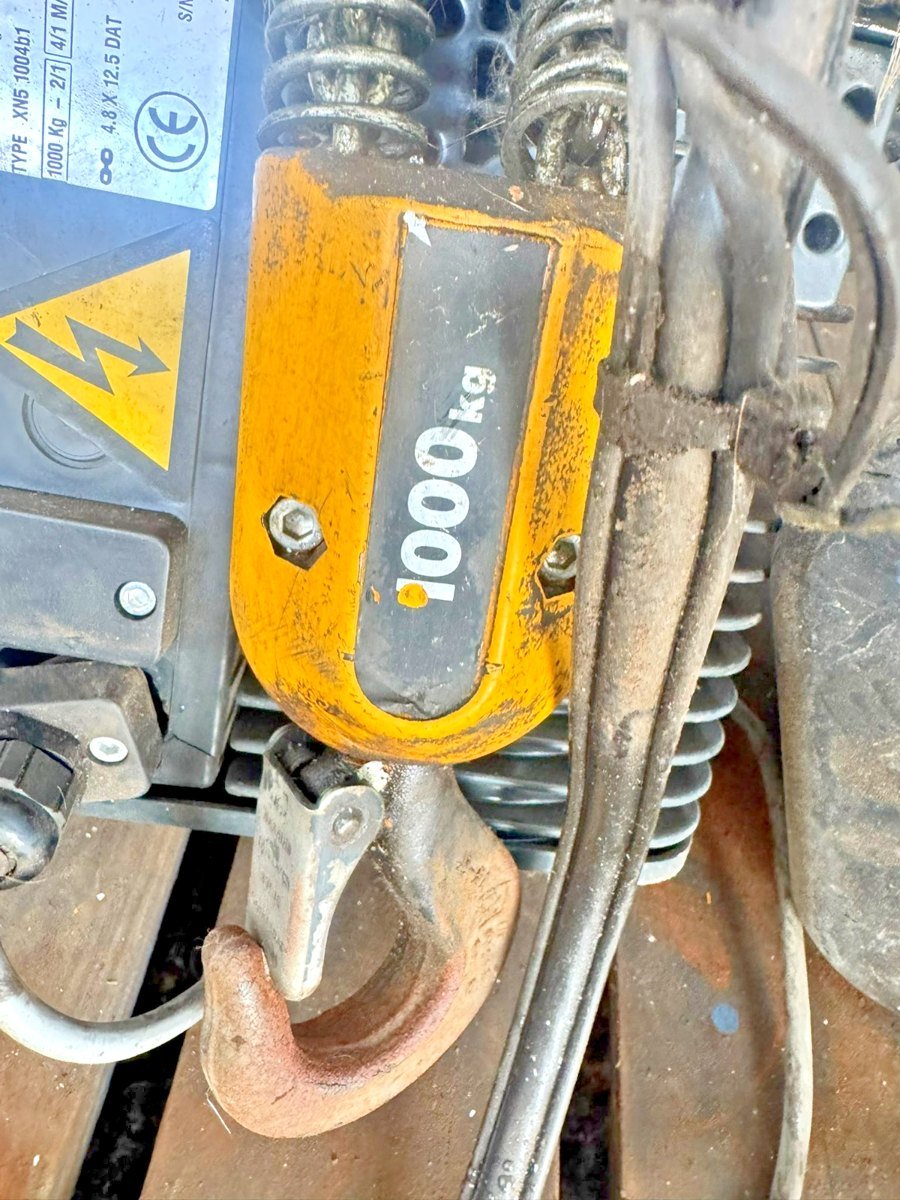

Specifications from the manufacturer’s plate

Manufacturer: Konecranes

Type: XN5 1004b1

Rated capacity: 1,000kg

Reeving: 2/1

Electrical supply: 400V, three-phase, 50Hz

Motor output: 0.8 / 0.2kW

ISO classification: M3

Protection rating: IP55

Load chain: 4.8 × 12.5 DAT

Plate date: 10 May 2007

Manufactured in Vernouillet, France

Lifting height, lifting speeds, cable lengths and compatible beam dimensions have not been confirmed.

Condition

Working used condition with scratches, paint wear, dirt and visible rust, including on the hook and trolley wheels.

The plastic chain container has a broken/chipped section around its upper edge, clearly shown in the photographs. Its condition and attachment should be assessed before use.

A hook safety latch is present. The hook, chain, trolley and controls have not been independently examined.

Certification

No current LOLER thorough examination report or certification is supplied. A competent person should examine the equipment before it is put into lifting service.
