Fronius VarioSynergic 4000 400A MIG MAG Welder VR3000 Wire Feeder 3 Phase

Fronius VarioSynergic 4000-2 G/W industrial MIG/MAG welding machine with separate VR3000 wire feeder, wheeled chassis and attached interconnecting cables.

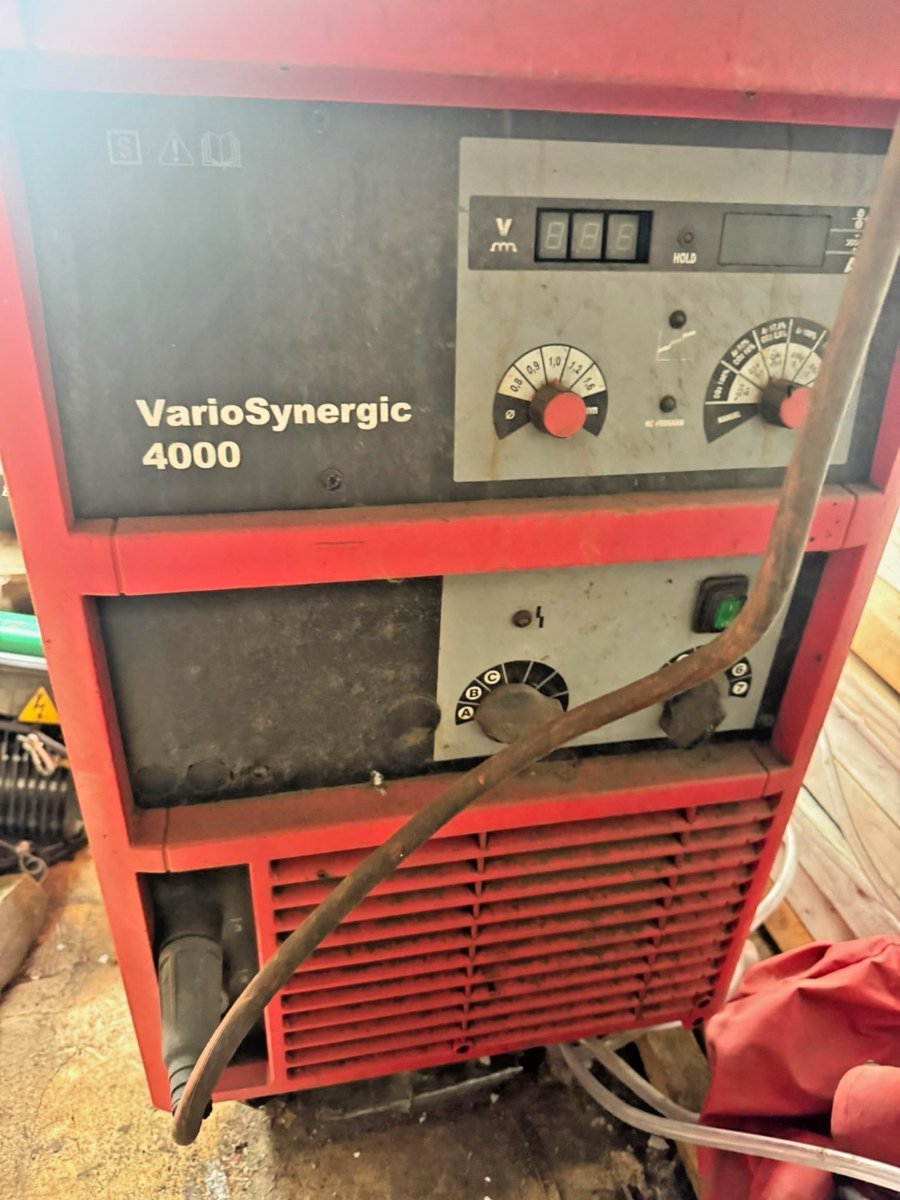

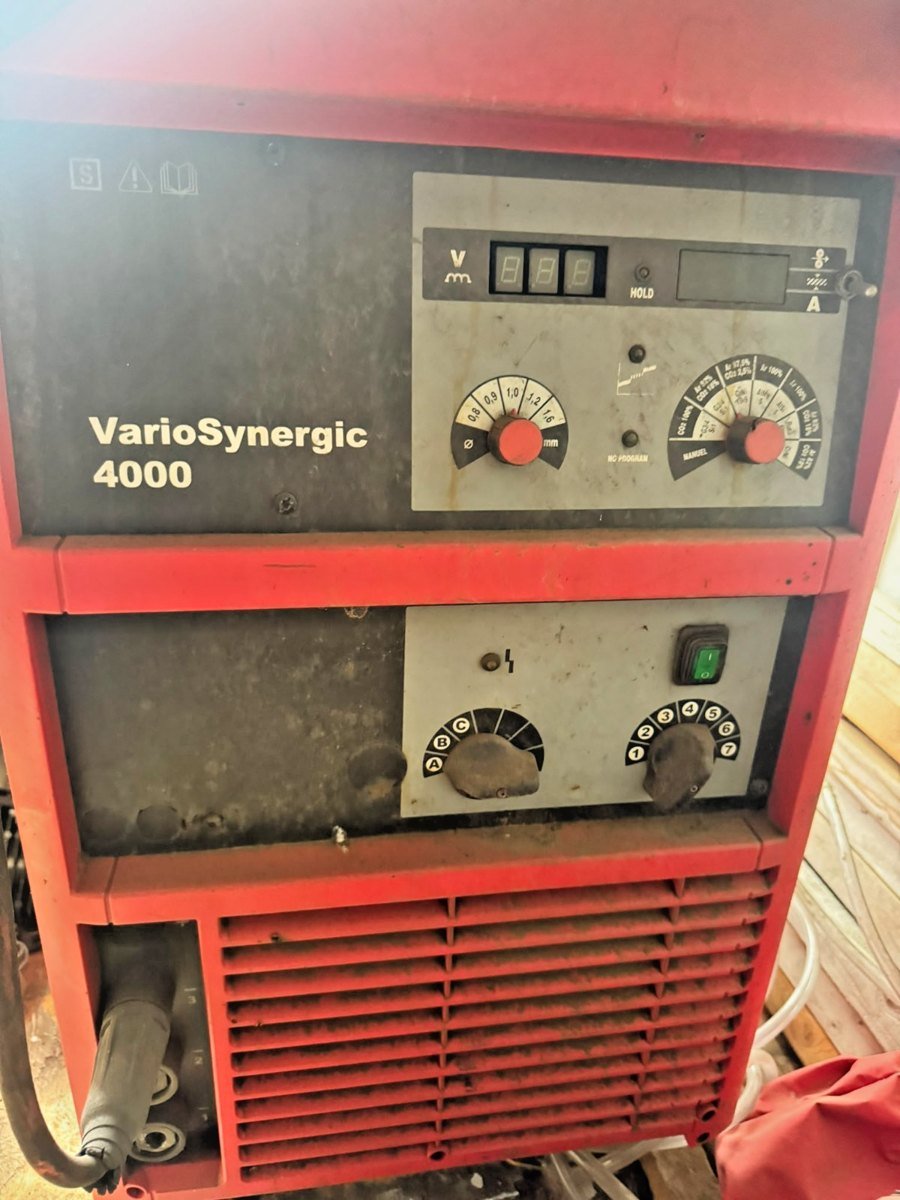

Working used equipment with a welding output range of 30–400A . The control panel provides synergic programme selection, manual mode and wire-diameter settings.

Specifications from the manufacturer’s plate

Manufacturer: Fronius

Model: VarioSynergic 4000-2 G/W

Article number: 4,025,203

Serial number: 18361798

Wire feeder: Fronius VR3000

Supply: three phase, 50–60Hz

Plate supply options: 400V / 230V three phase

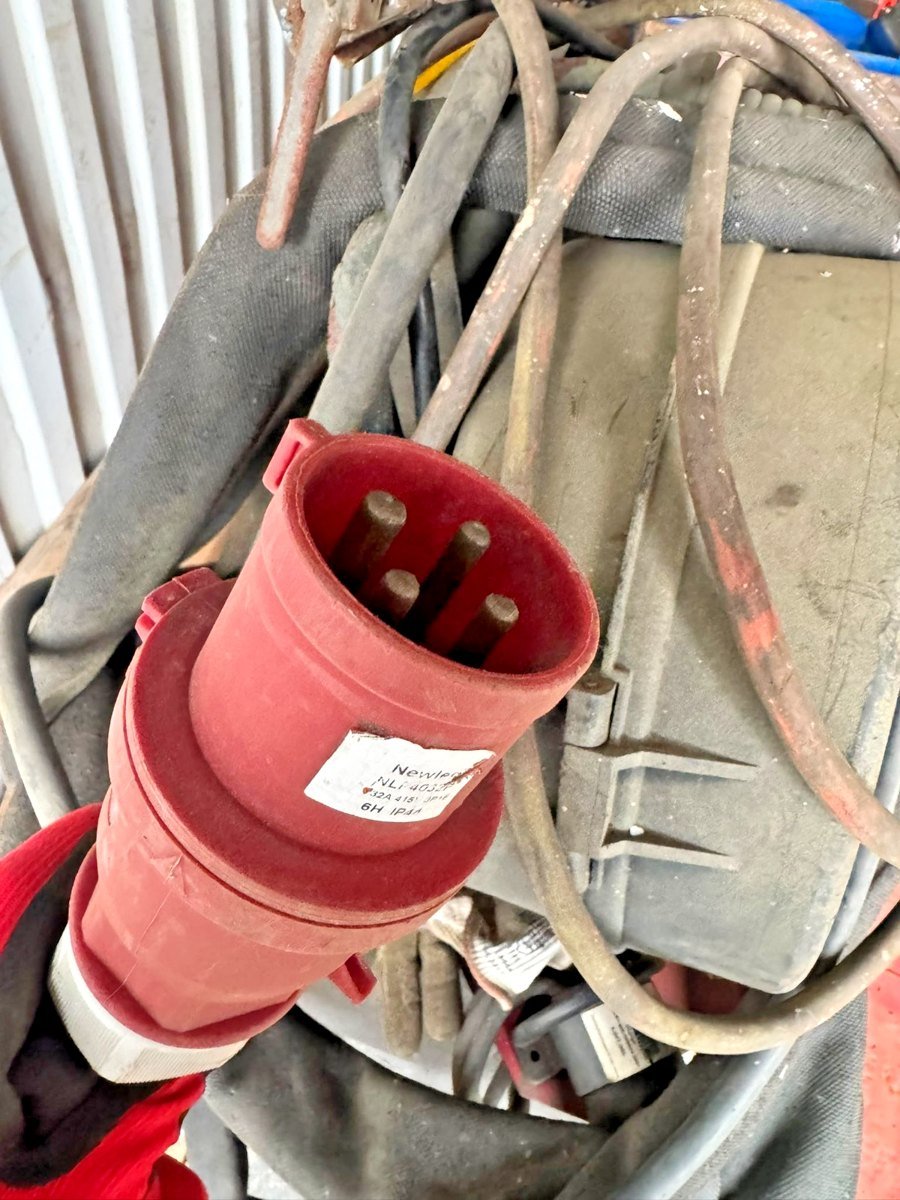

Fitted plug marking: 32A, 415V, 3P+E

Welding output: 30A at 15.5V to 400A at 34V

Duty cycle at 40°C: 400A at 35% 290A at 60% 220A at 100%

Open-circuit voltage: 51V

Maximum input current at 400V: 28A

Effective input current at 400V: 16.6A

Plate fuse rating: 35A

Protection rating: IP23

Manufacture date: not confirmed

The 230V plate option is three phase. Electrical configuration and supply suitability should be checked before connection.

Included

Fronius VarioSynergic 4000 power source

Fronius VR3000 wire feeder

Wheeled chassis

Attached interconnecting cables and hoses pictured

Fitted red industrial supply plug

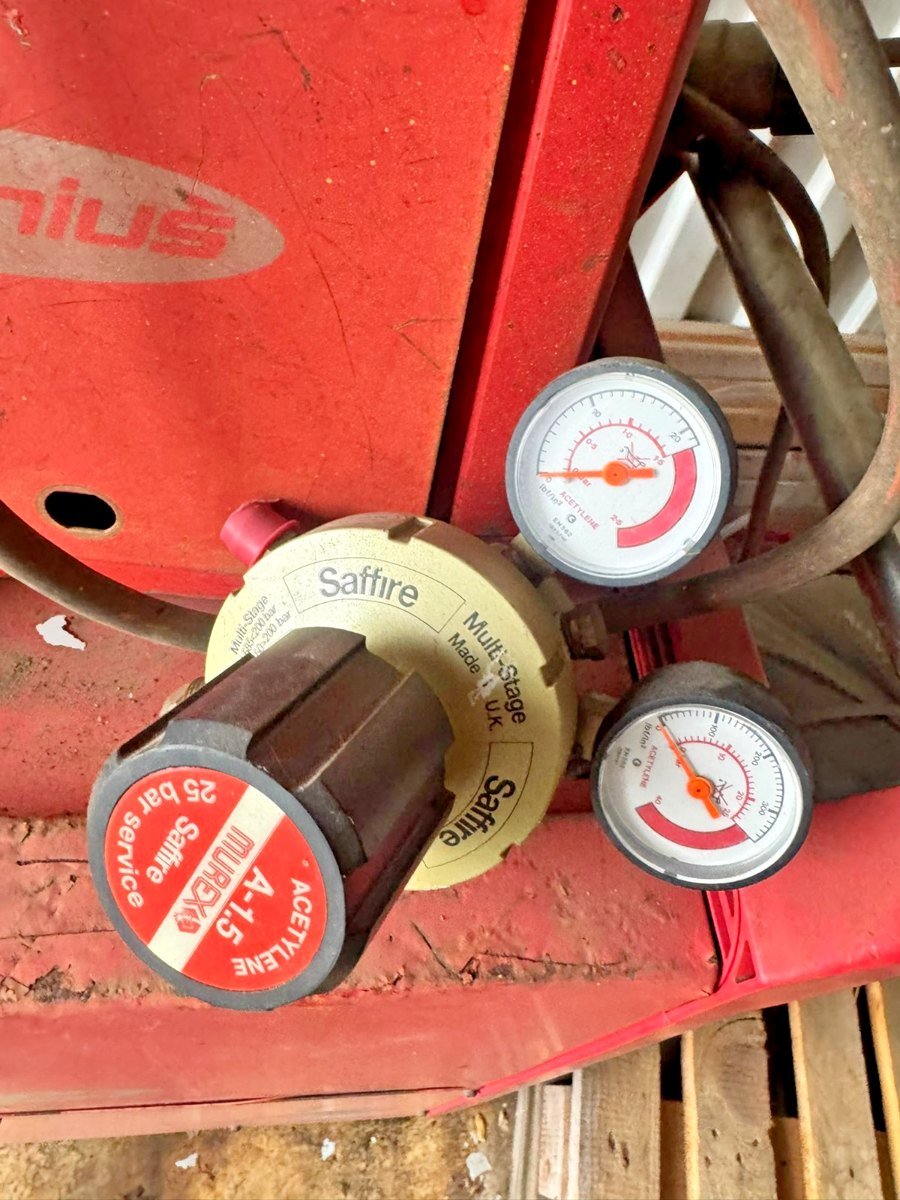

A welding torch and earth clamp are not clearly identifiable in these photographs and are not confirmed as included. No gas cylinder is included. The loose Saffire acetylene regulator shown on top is excluded.

Condition

The machine functions and works. It has signs of industrial use, including dust, dirt, scratches, paint wear, surface corrosion and marks to the casing and panels.

The upper selector knob on the VR3000 feeder is missing its centre cap. Cables and hoses show wear and should be checked before service. Please review all photographs for the exact condition and supplied components.

Testing and documentation

No current electrical safety test certificate, service report or calibration certificate is supplied.

Working operation does not confirm electrical inspection or calibration status. A competent person should check the machine, supply configuration, cables, connections and gas/cooling arrangements before installation and use.
