ESAB EPP-360 Precision Plasmarc 360A Plasma Power Source 400V 3 Phase

ESAB Precision Plasmarc 360 industrial plasma power source, model EPP-360, manufactured in Sweden. Used and working, with signs of previous industrial use.

An option for replacing an existing compatible power source or integrating into a suitable industrial plasma cutting installation.

Specifications from the manufacturer’s plate

Model: EPP-360 / Precision Plasmarc 360

Article number: 0558007831

Serial number: 015-049-2913

Supply: 380V or 400V, three phase, 50Hz

Rated input current: 139A at 380V / 132A at 400V

Output range shown: 10A at 84V to 360A at 200V

Rated duty cycle: 100% at 360A / 200V

Open-circuit voltage: 342V at 380V supply / 360V at 400V supply

Fan cooled

Protection rating: IP21

Weight: 475kg

Country of manufacture: Sweden

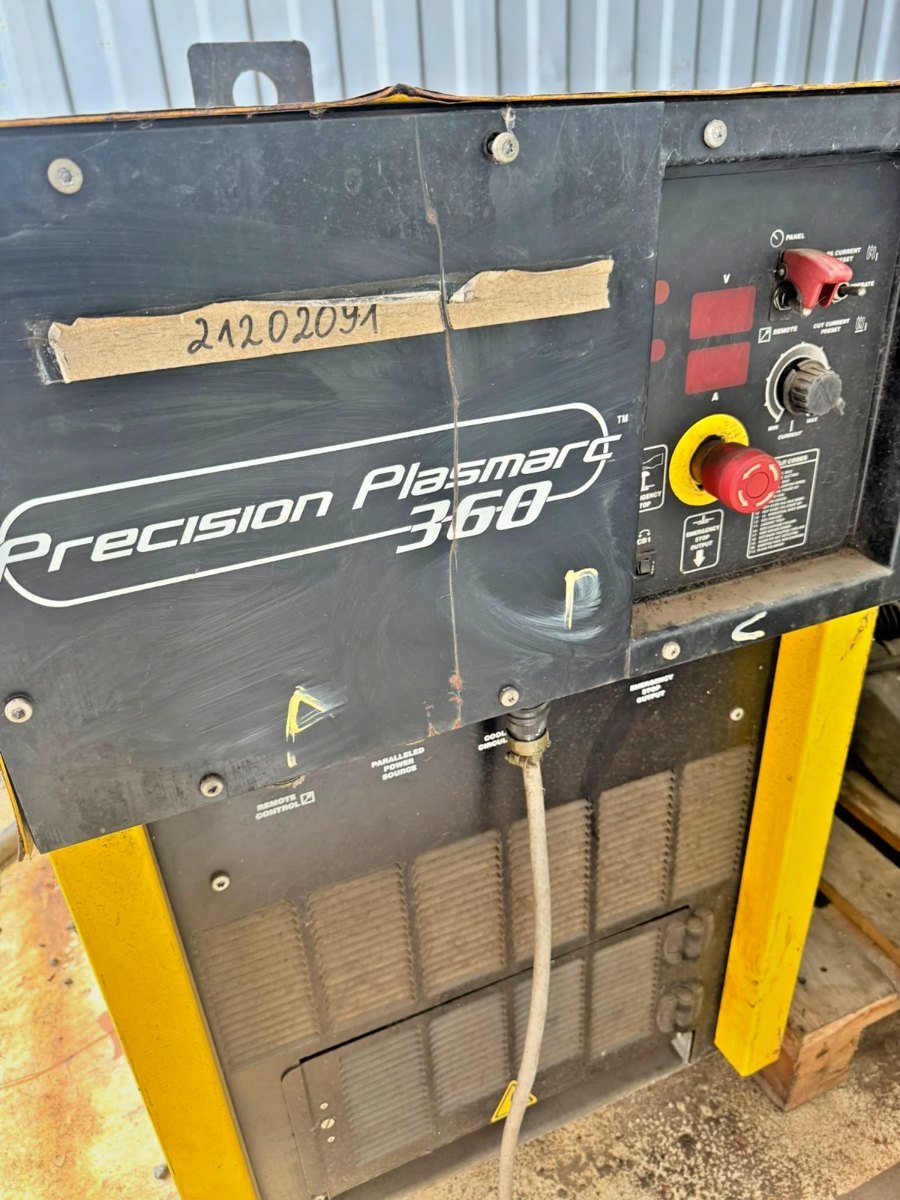

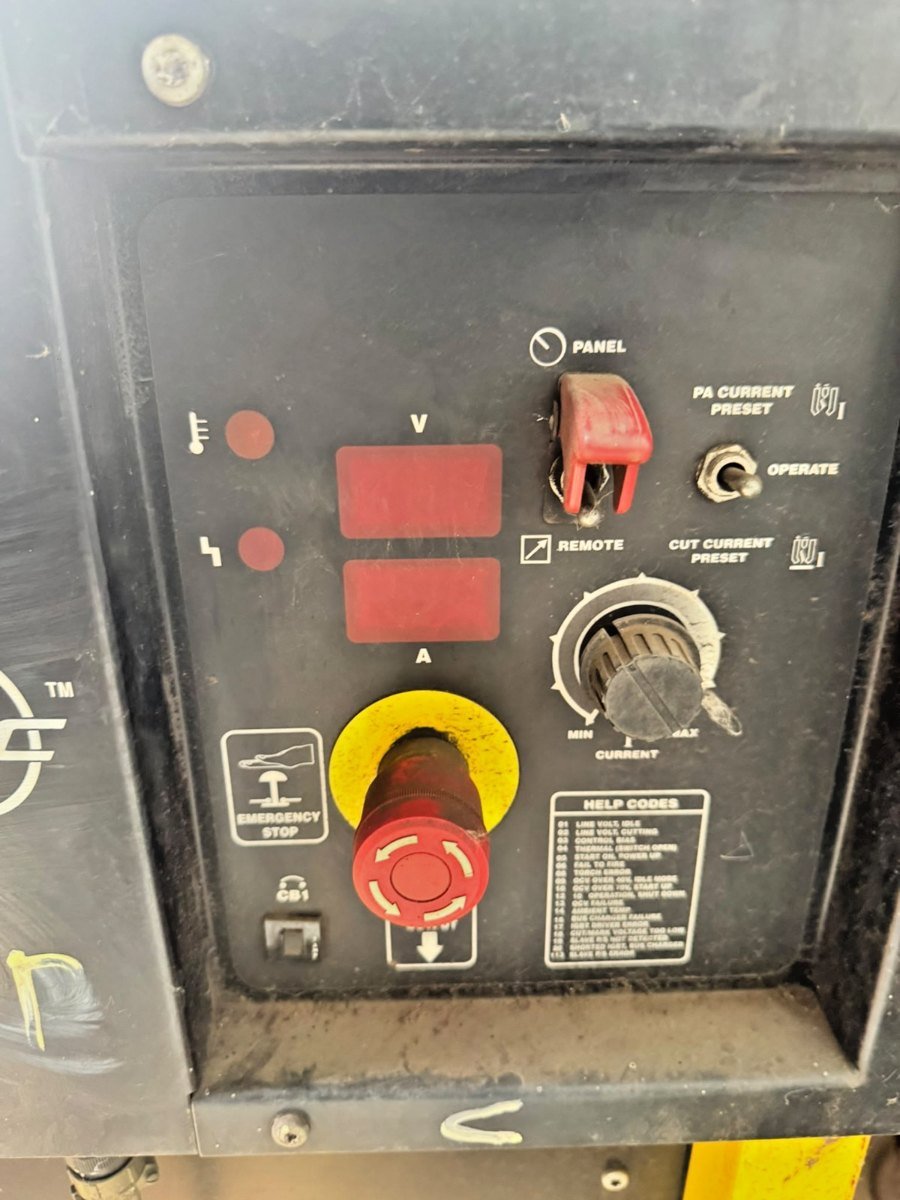

Front panel includes voltage and current displays, current adjustment, panel/remote selection and emergency stop.

Condition

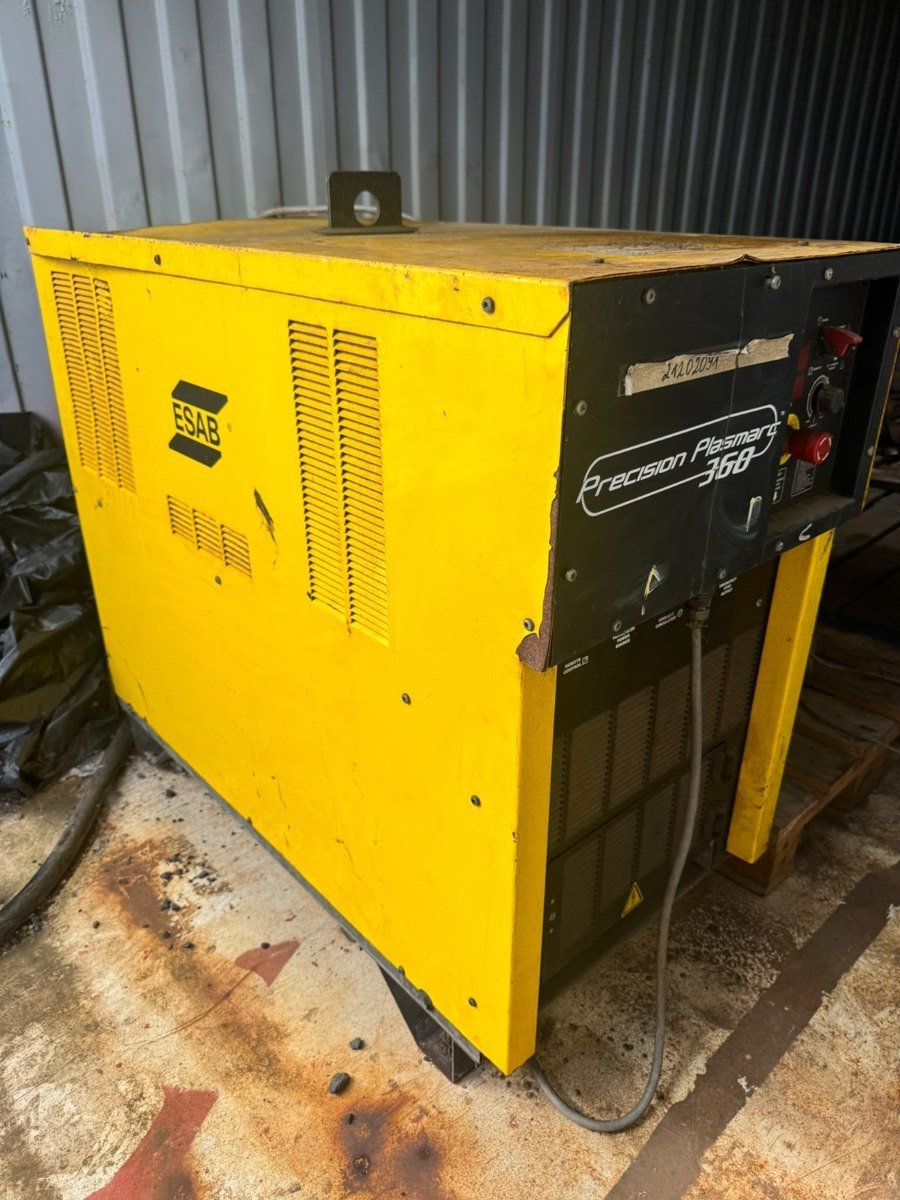

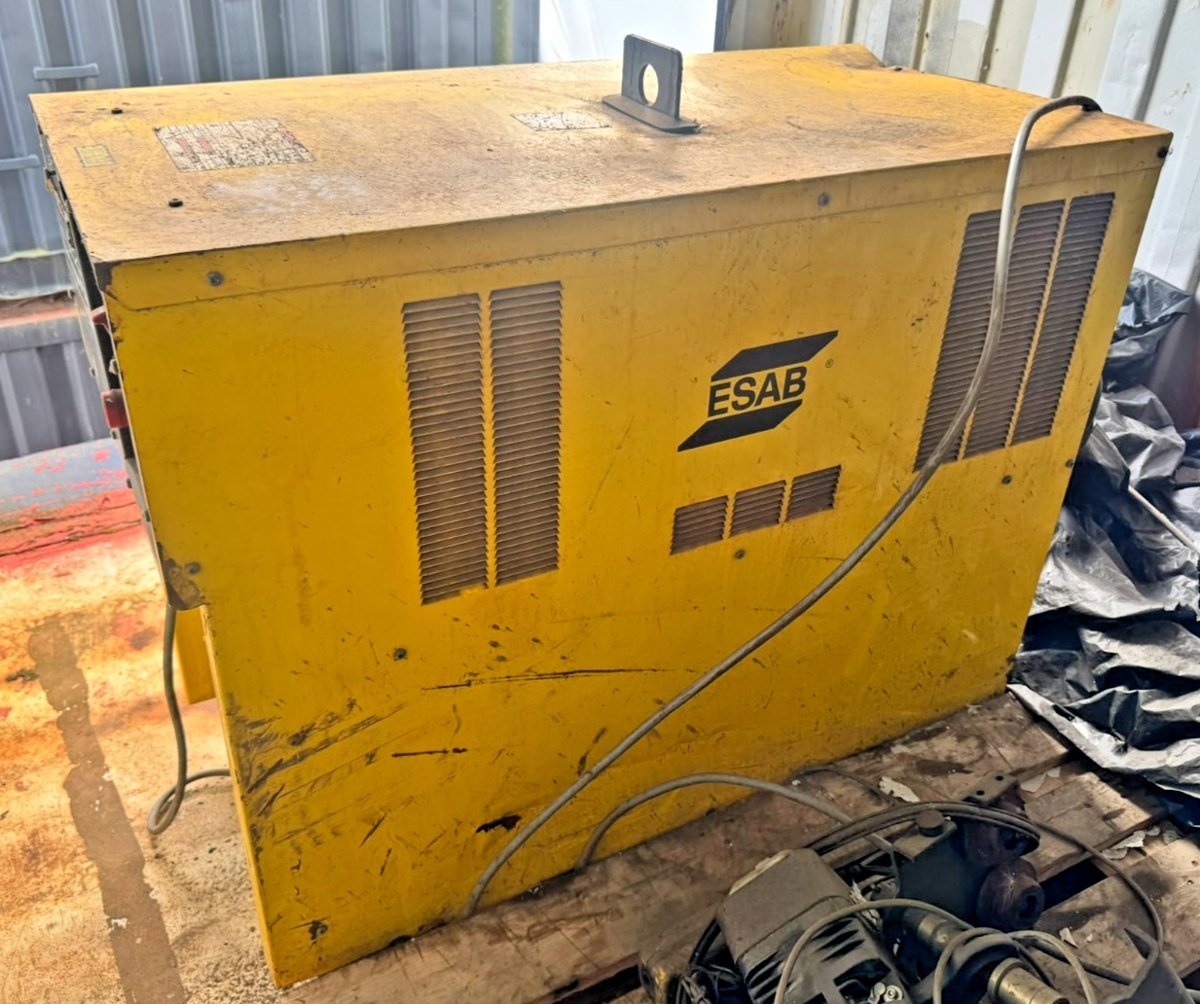

Working used equipment. The cabinet has scratches, chipped paint, surface corrosion and dents, including deformation along the top panel edge. Controls and labels show wear. Please examine the photographs for the actual cosmetic condition.

Included equipment

Sale is for the ESAB power source and its attached leads shown. No separate torch, cutting table, CNC controller, gas equipment or cooling unit is included unless expressly agreed. Other equipment in the background is excluded.

Documentation and installation

No current inspection or test certification is supplied. Requires a suitable industrial three-phase electrical supply and installation by a qualified person. The buyer should confirm compatibility with their cutting system and arrange appropriate electrical checks before commissioning.

Collection

Collection preferred due to the 475kg weight. Suitable transport and loading arrangements must be agreed before collection.
