Demag PLV 84 1.6T Electric Wire Rope Hoist Powered Trolley 415V Working No LOLER

Mannesmann Demag PLV 84 electric wire-rope hoist with powered trolley, in working order. Rated at 1,600kg, with main and fine lifting speeds for controlled load positioning.

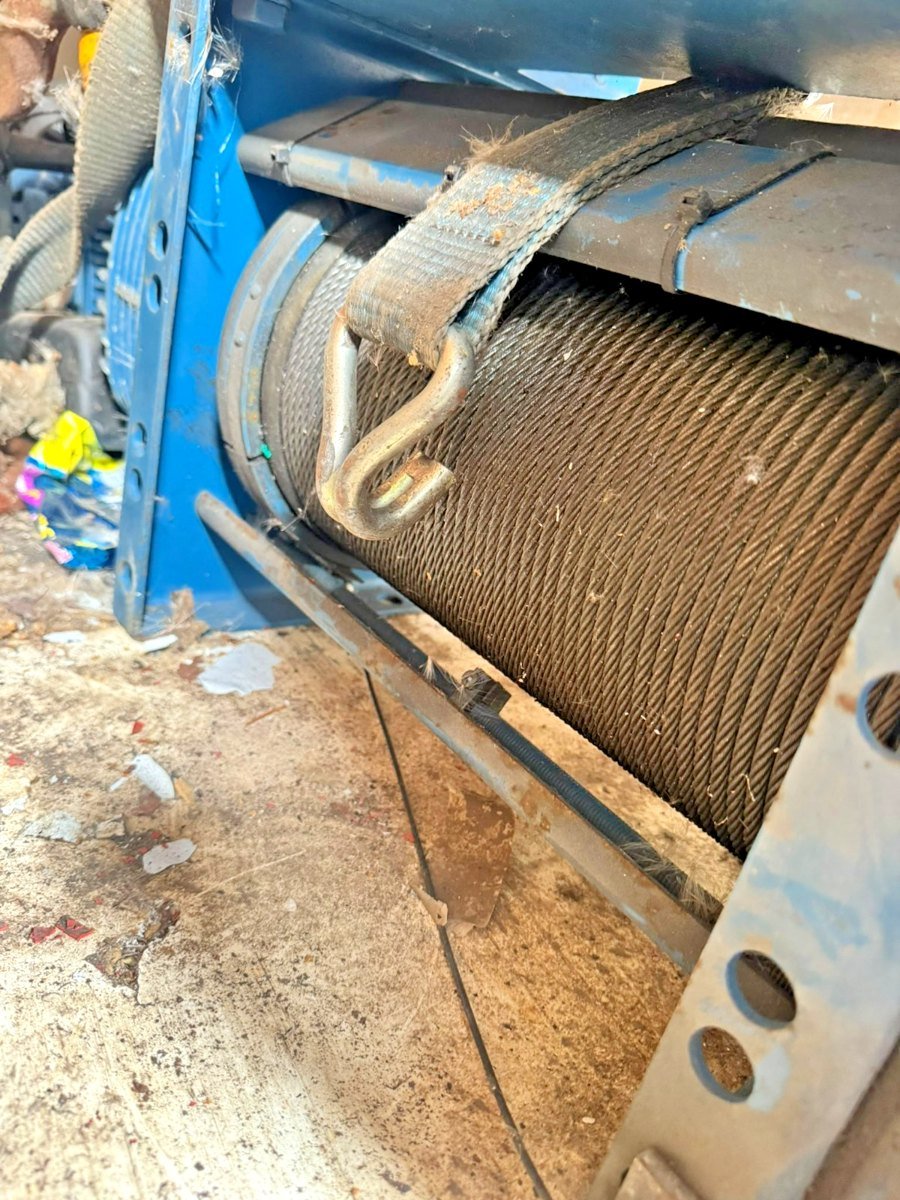

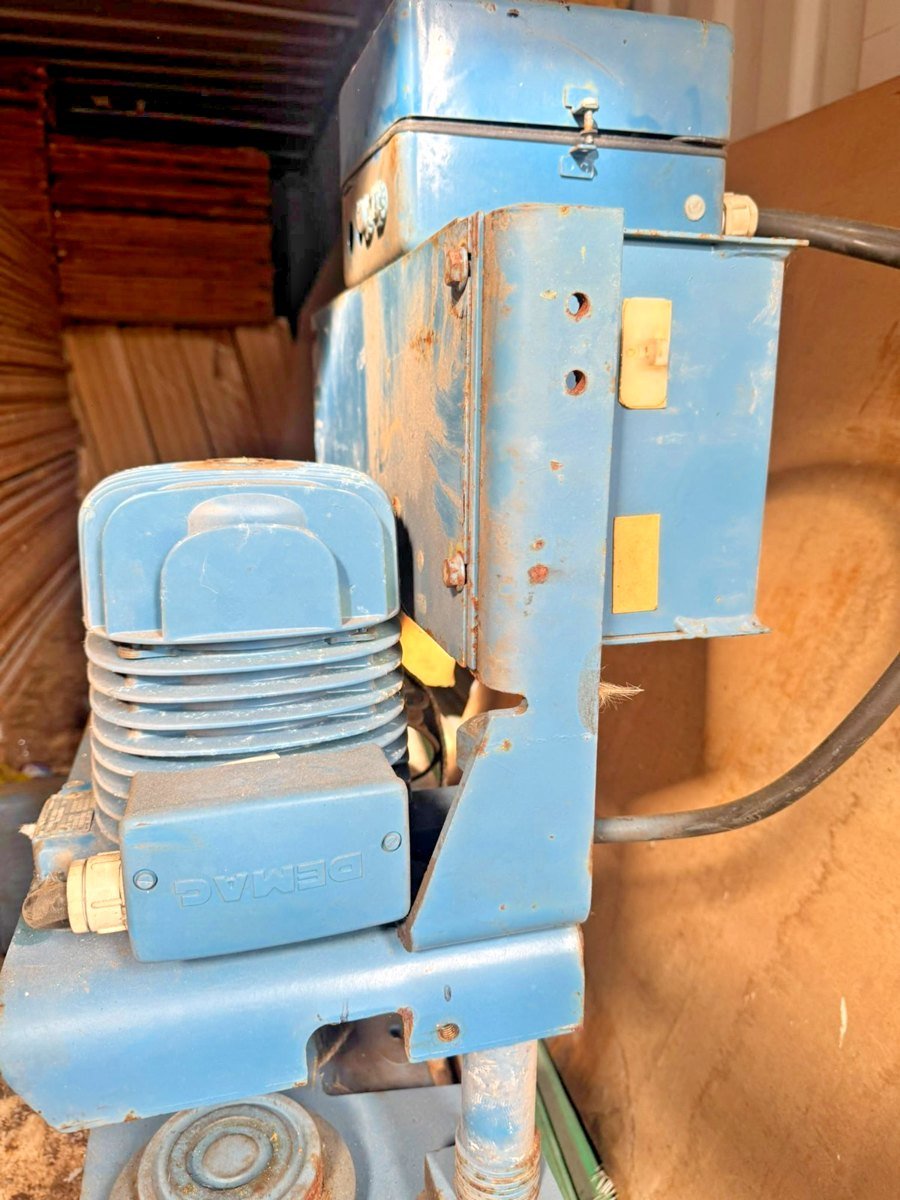

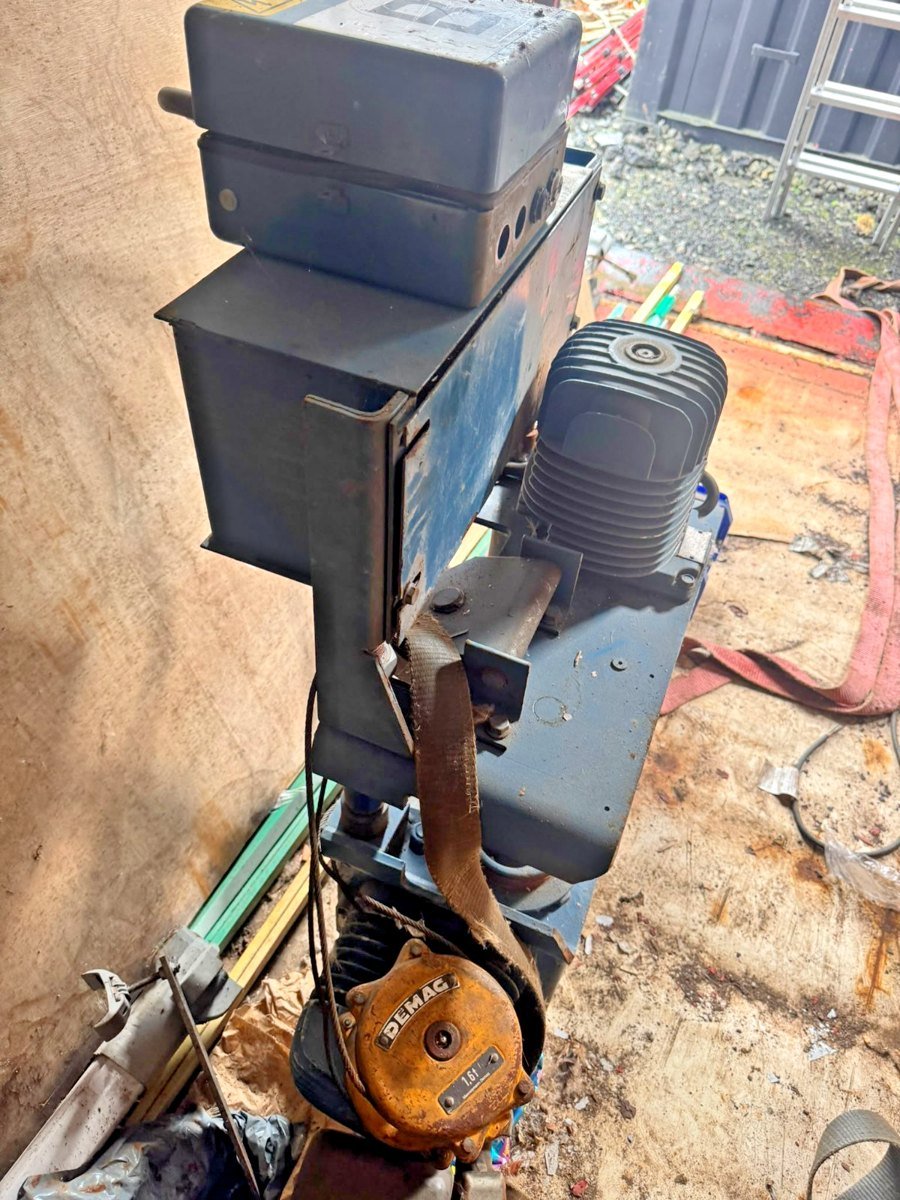

Supplied with the pictured trolley assembly, wire-rope drum, fitted rope, electrical enclosures and bottom hook block marked 1.6 tonnes.

Specifications from the manufacturer’s plate

Manufacturer: Mannesmann Demag

Hoist size/type: PLV 84

Serial number: 41502518

Year of manufacture: 1994

Rated lifting capacity: 1,600kg / 1.6 tonnes

Hook travel: 8 metres

Main lifting speed: 5m/min

Fine lifting speed: 1.2m/min

Reeving: 4/1

Wire-rope diameter: 5.5mm

Hoist motor output: 1.50 / 0.35kW

Supply: 415V, three-phase, 50Hz

FEM group: 1Am

Protection rating: IP54

Made in Germany

Hook travel is the manufacturer’s plate specification; available travel has not been independently measured. Suitable beam dimensions and trolley adjustment range have not been confirmed.

Condition

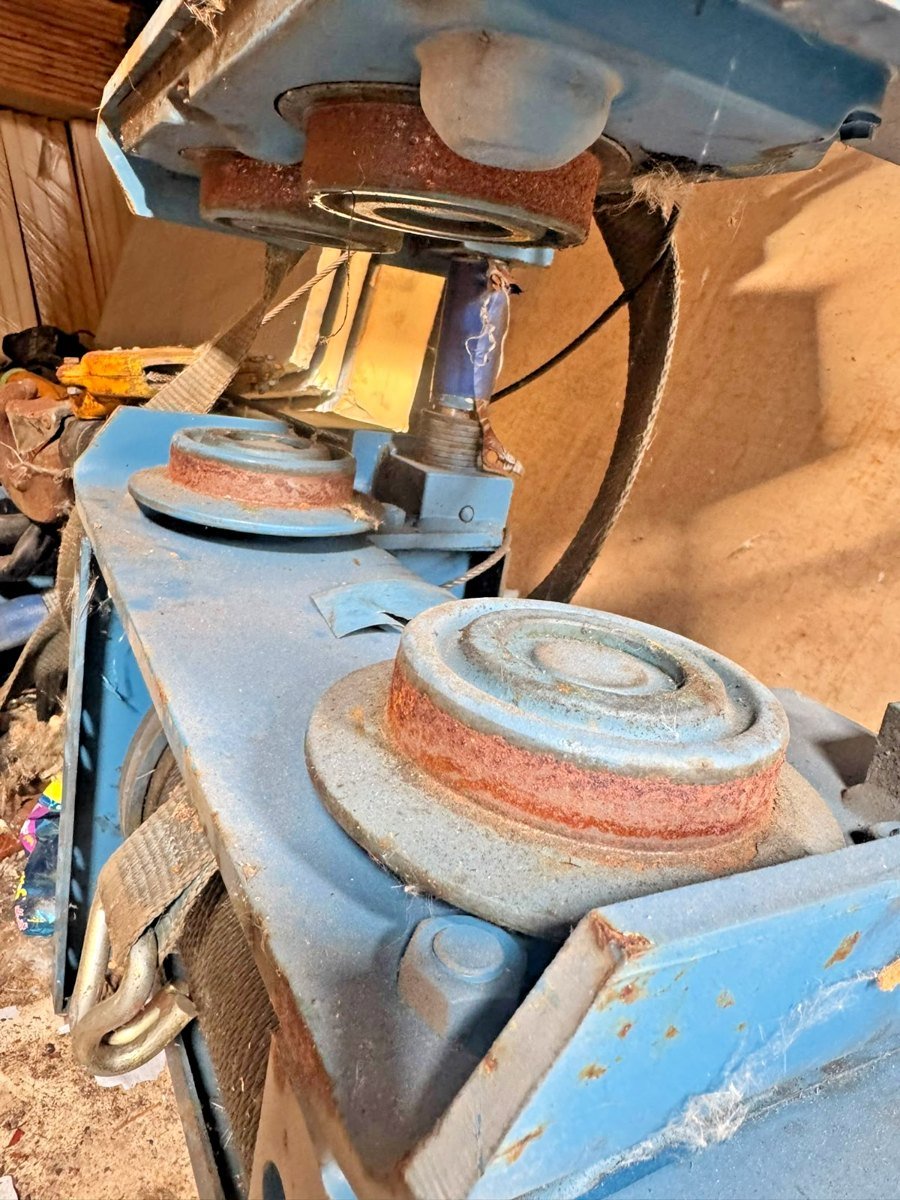

Working used condition with paint wear, scratches, dirt and visible rust, including on the trolley wheels and hook block.

The photographs show open cable-entry holes in the upper electrical enclosure. Enclosure completeness, electrical protection and the condition of the rope,

Certification

No current LOLER thorough examination report or certification is supplied. A competent person should examine the equipment before it is put into lifting service.
