Demag DKUN 5-500 Electric Chain Hoist 500kg/1T 415V 3 Phase Working No LOLER

Mannesmann Dematic / Demag DKUN 5-500 K V1 F4 electric chain hoist in working order, with two-speed lifting for controlled load positioning.

Supplied with the pictured pendant control, load chain, bottom hook, chain container and attached electrical leads.

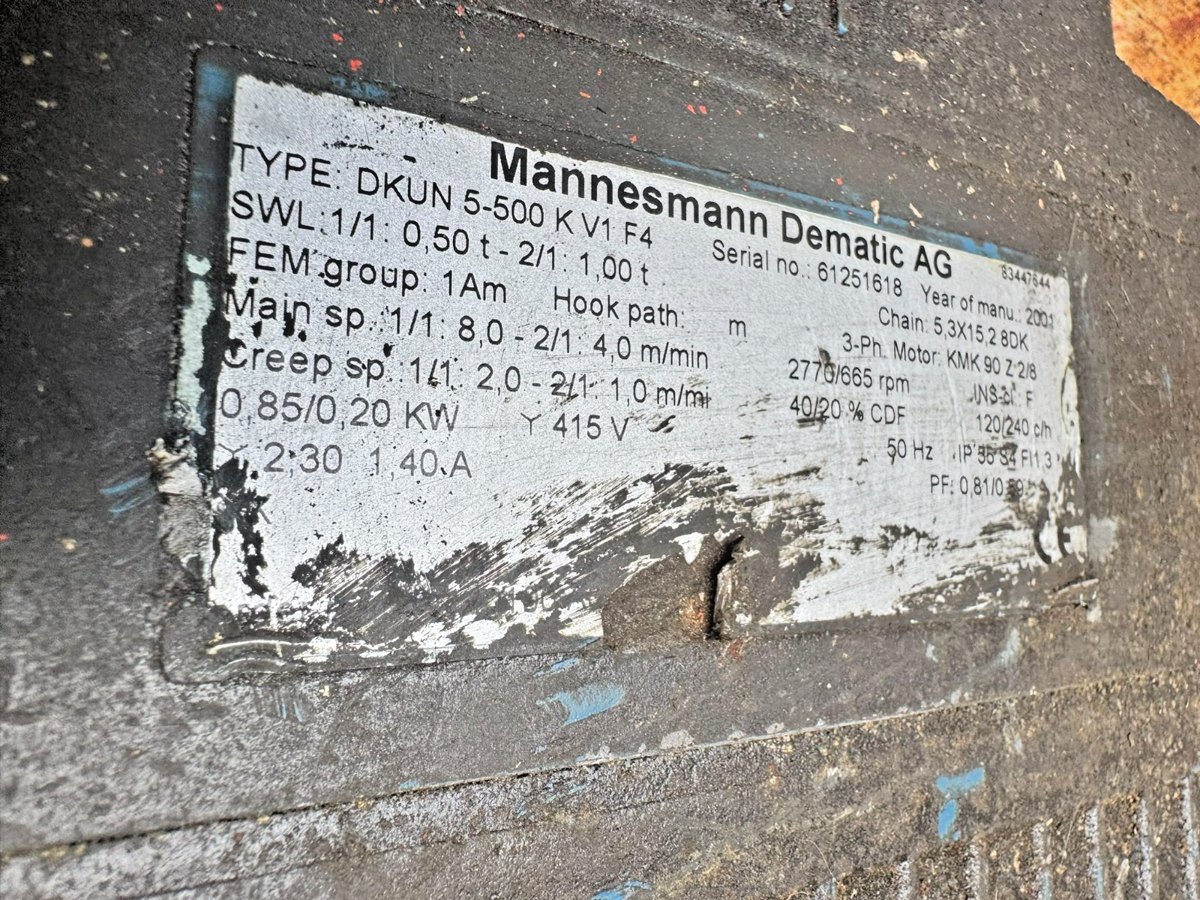

Specifications from the manufacturer’s plate

Model: DKUN 5-500 K V1 F4

Serial number: 61251618

Year of manufacture: 2001

Capacity: 500kg single fall / 1,000kg double fall

Main lifting speed: 8m/min single fall / 4m/min double fall

Fine lifting speed: 2m/min single fall / 1m/min double fall

Supply: 415V, three-phase, 50Hz

Motor output: 0.85 / 0.20kW

FEM classification: 1Am

Chain specification: 5.3 × 15.2mm

Insulation class: F

Protection rating: IP55

The applicable lifting capacity depends on the fitted chain configuration. Both capacities are listed on the plate; the fitted arrangement has not been independently verified. Lifting height and cable lengths have not been measured.

Condition

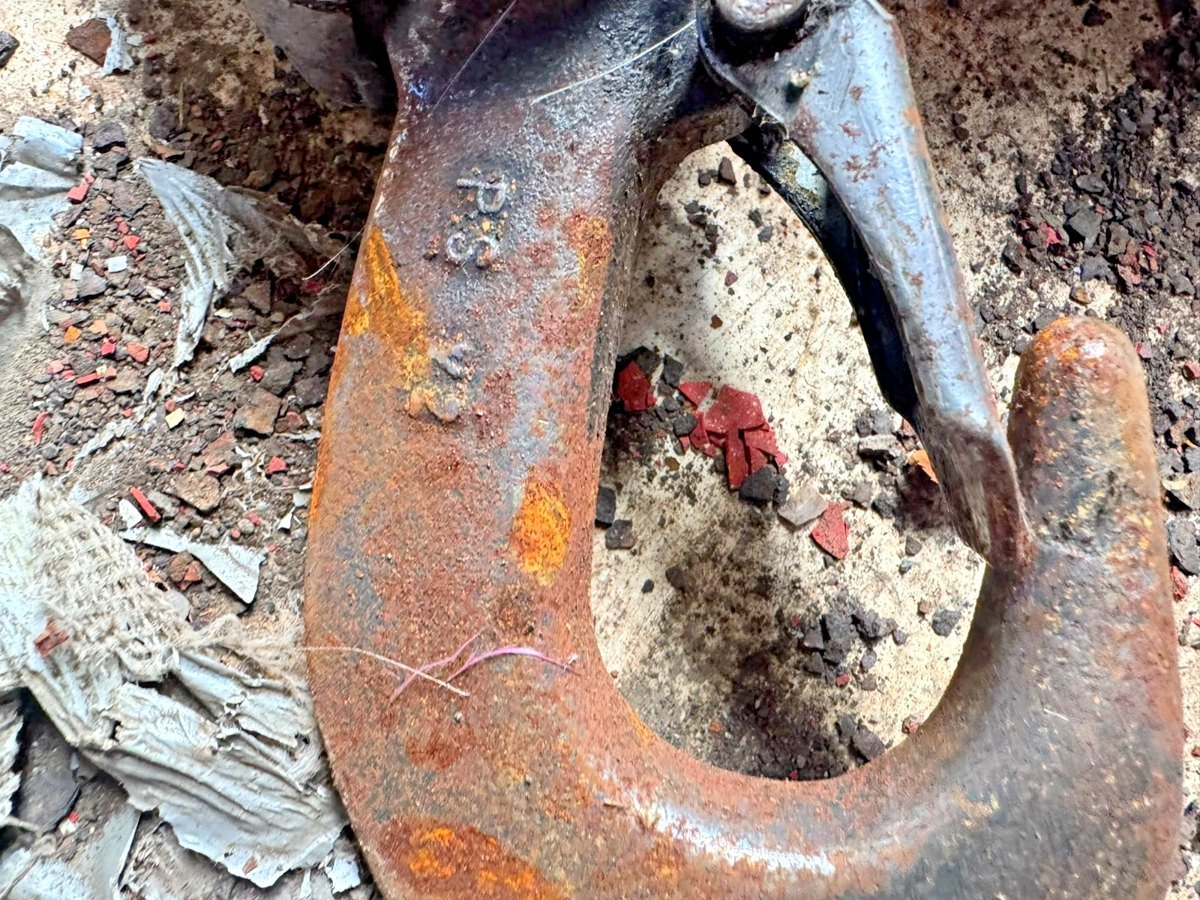

Working used condition with scratches, paint wear, dirt and visible rust on the hook and suspension eye. The identification plate is worn but the main specifications remain readable.

Please review the actual-item photographs for condition and included components.

Certification

No current LOLER thorough examination report or certification is supplied. A competent person should examine the equipment before it is put into lifting service.
